La funzione map

La funzione map consente di disegnare confini geografici.

nps	north-pole stereographic	latr='20 90' lonr='-270 90'
sps	south-pole stereographic	latr='-90 -20' lonr='-270 90'
lola	(lat-lon) (0..360)
lola2	(lat-lon) (-180..180)'
usa
usa2
n_amer
s_amer
africa
europe
euro2

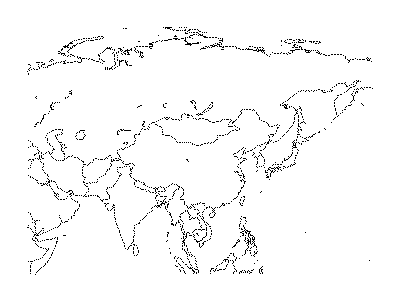

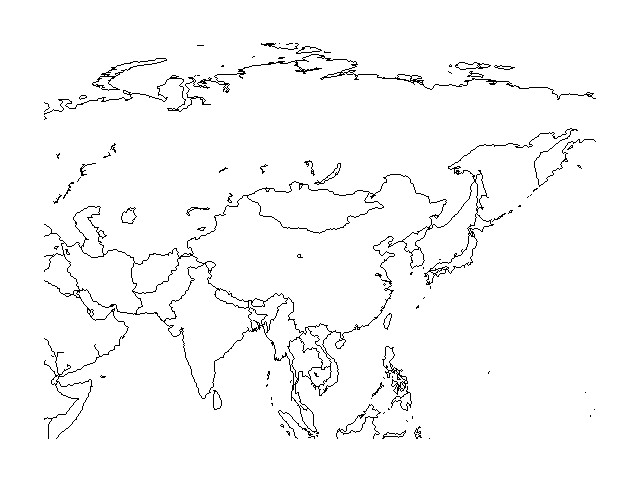

asia
aust
robinson
c_pac

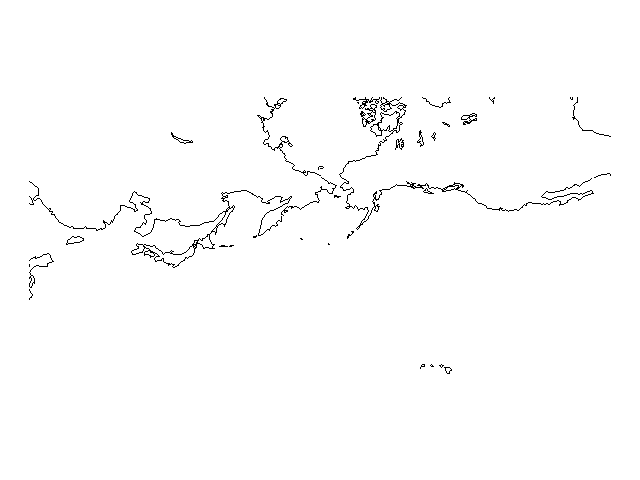

n_pac
n_atl
nps2
nps3

function map(arg)

*
* asks you which map projection to use
* easier than set lat ...
*
* of course this script needs to be customized
* script originally was part of the revised BAMS
* reanalysis cd-rom demo
*
* usage: run map [optional map type]
*
* v1.2.2 w. ebisuzaki
*
if (arg = '')
say 'change projection of the display:'
say ' nps (north-pole stereographic)'
say ' sps (sorth-pole stereographic)'
say ' lola (lat-lon) (0..360)'
say ' lola2 (lat-lon) (-180..180)'
say ' usa, usa2 or n_amer'
say ' s_amer, africa, europe, euro2, asia, aust'
say ' robinson c_pac n_pac n_atl nps2 nps3'
say ' custom [lon0 dlon lat0 dlat] (lat0,lon0=left-bottom corner)'
say ' '
prompt 'enter projection: '
pull cmdline
else
cmdline=arg
endif

map=subwrd(cmdline,1)

proj='latlon'
latr='-90 90'
lonr='0 360'
maptype='lowres'
mpvals='off'

if (map = 'nps' | map = 'NPS')
proj='nps'
latr='20 90'
lonr='-270 90'
endif
if (map = 'nps2' | map = 'NPS2')
proj='nps'
latr='20 90'
lonr='-180 180'
endif
if (map = 'nps3' | map = 'NPS3')
proj='nps'
latr='20 90'
lonr='-60 300'
endif
if (map = 'sps' | map = 'SPS')
proj='sps'
latr='-90 -20'
lonr='-270 90'
endif
if (map = 'usa' | map = 'USA')
maptype='mres'
proj='latlon'
latr='24 52'
lonr='-127 -65'
endif
if (map = 'usa2' | map = 'USA2')
maptype='mres'
proj='nps'
latr='15 80'
lonr='-150 -45'
mpvals='-125 -75 25 55'
endif
if (map = 'n_amer' | map = 'N_AMER')
maptype='mres'
proj='nps'
latr='5 90'
lonr='-270 90'
mpvals='-135 -65 18 85'
endif
if (map = 's_amer' | map = 'S_AMER')
maptype='mres'
proj='latlon'
latr='-60 20'
lonr='-90 -30'
endif
if (map = 'africa' | map = 'AFRICA')
maptype='mres'
proj='latlon'
latr='-40 50'
lonr='-20 60'
endif
if (map = 'europe' | map = 'EUROPE')
maptype='mres'
proj='nps'
latr='5 90'
lonr='-180 180'
mpvals='-10 50 30 75'
endif
if (map = 'euro2' | map = 'EURO2')
maptype='mres'
proj='nps'
latr='5 90'
lonr='-180 180'
mpvals='-56 36 29 68'
endif
if (map = 'asia' | map = 'ASIA')
maptype='mres'
proj='latlon'
latr='0 80'
lonr='40 170'
endif
if (map = 'aust' | map = 'AUST' | map = 'oz')
maptype='mres'
proj='latlon'
latr='-50 0'
lonr='100 180'
endif
if (map = 'lola' | map = 'LOLA')
proj='latlon'
endif
if (map = 'lola2' | map = 'LOLA2')
proj='latlon'
lonr='-180 180'
endif
if (map = 'c_pac' | map = 'C_PAC')
proj='latlon'
latr='-45 45'
lonr='120 290'
endif
if (map = 'n_pac' | map = 'N_PAC')
proj='nps'
latr='0 90'
lonr='90 270'
mpvals='100 260 22 89'
endif
if (map = 'robinson' | map = 'ROBINSON')
proj='robinson'
latr='-90 90'
lonr='-180 180'
endif
if (map = 'custom' | map = 'CUSTOM' )
* custom lon0 dlon lat0 dlat
maptype='mres'
proj='latlon'
lon0=subwrd(cmdline,2)
dlon=subwrd(cmdline,3)
lat0=subwrd(cmdline,4)
dlat=subwrd(cmdline,5)
if (dlon <= 0)
dlon=10
endif
if (dlat <= 0)
dlat=10
endif
lon1=lon0 + dlon
lat1=lat0 + dlat
latr=lat0' 'lat1
lonr=lon0' 'lon1
endif

'set mpdset 'maptype
'set mpvals 'mpvals

'set mproj 'proj
'set lat 'latr
'set lon 'lonr
